Double-eccentric butterfly valve HG1

Wafer type butterfly valve for clamping

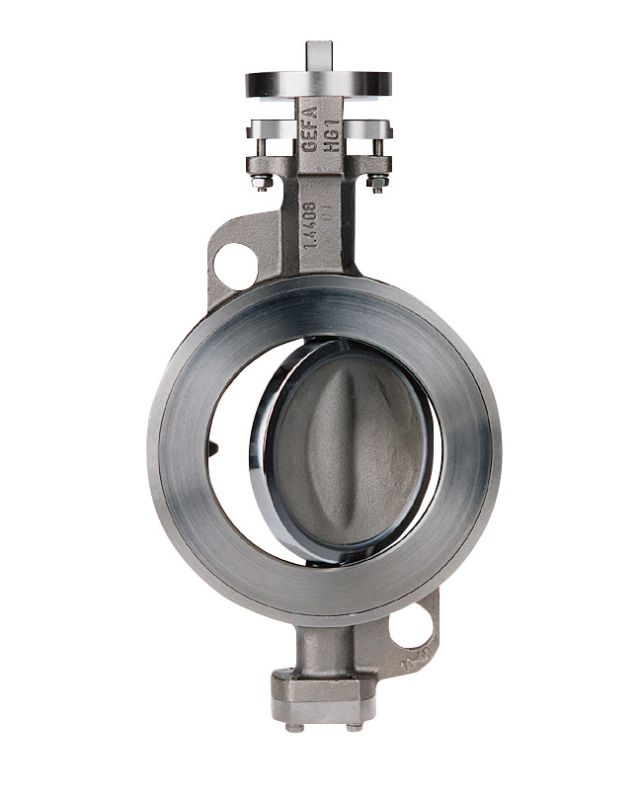

Butterfly valve double offset design HG1

Technical data

High-performance butterfly valve with a double-eccentric design for high pressure and temperature conditions. For installation between flanges.

  • Sizes: DN 50 to DN 1000
  • Pressure ratings (depending on nominal size): up to PN 40, ASME Class 150/300, PS 25/40
  • Temperature range: - 50°C to + 400°C
  • Vacuum: up to 1 mbar(abs)
  • Face-to-face dimension: DIN EN 558 line 20, Optional: line 25 and line 16, API 609 Table 1
  • Mounting flange: DIN EN ISO 5211
  • Test: Inspection certificates acc. to EN 10204/3.1, Pressure and tightness tests acc. to DIN EN 12266 P10 P11 P12, leakage rate A
  • Marking: DIN EN 19, AD 2000, digital nameplate IEC 61406, Option ISO 15848-1, Option: ATEX Zone 0/20, 1/21, 2/22

Applications and Industries

  • Plant Engineering
  • Food Industry
  • Chemical, Petrochemical, and Pharmaceutical Industries
  • Paints, Coatings, and Dyeing
  • Paper and Pulp
  • Water and Wastewater
  • Energy Technology
  • Transportation and Traffic
  • Environmental Technology, Mining, etc.

Materials

Body

Steel 1.0619, Stainless steel 1.4408

Disc

Steel 1.0619, Stainless steel 1.4408

Seat

Pure PTFE, PTFE/glass, PTFE/carbon, PEEK, POM, 1.4571 steel, PTFE/metal, PTFE/glass-metal, PTFE/carbon-metal

We are pleased to be at your disposal for further material requests. Please do not hesitate to contact us.
