PM series (PMM type)
Technical data

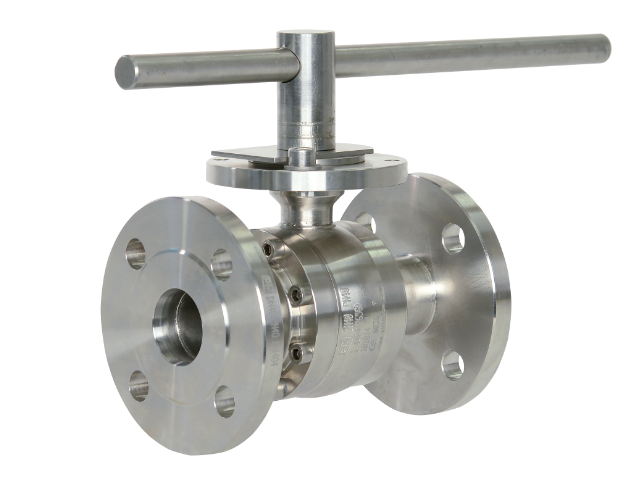

Our high performance ball valve PMM is available in a one-piece or two-piece design and is intended for installation between flanges according to EN 10921. The ball valve is characterized by its metallic seals and is thus suitable for a high temperature range up to +650°C, for abrasive, erosive and other diverse applications.
- Sizes: DN 15 to DN 150
- Passage: full bore
- Pressure ratings: PN 10 to PN 40, ASME Class 150/300 lbs
- Operating temperature: -60 °C to +650 °C
- Face-to-face dimension: EN 558 Series 1, ANSI B16.10
- Special features: for applications with extremely high temperatures
Applications and industries
- Plastic melts
- Heat transfer oils
