Magnetic drive centrifugal pumps MAG/CPMD

Safe and reliable pumping with magnetically driven centrifugal pumps type MAG and CPDM

Our magnetically driven centrifugal pumps offer a particularly safe solution for pumping chemical and corrosive liquids. The completely leak-proof pump housing without shaft seal ensures that there is no risk of leaks. The torque is transmitted contact-free via a magnetic coupling to the internal magnet that drives the impeller - for low-wear and long-life operation. Depending on the requirements, the pump housings are made of chemical-resistant PP or PVDF, ideal for use in demanding industrial environments.

Magnetically driven centrifugal pump MAG

Magnetically driven centrifugal pump MAG
read more

Magnetically driven centrifugal pump CPMD

Magnetically driven centrifugal pump MAG
read more

Magnetically driven centrifugal pump

Magnetic drive centrifugal pumps MAG

The Corode MAG pumps are equipped with a 3ph 230-400V engine as standard and are designed for a maximum viscosity of 200 cST. The pump head is available in PP or PVDF, depending on requirements. The shaft and bearing are made of high-quality ceramic.

The O-rings made of EPDM or Viton can be selected for individual requirements. The maximum media temperature is 60°C for PP and 90°C for PVDF.

Technical data


The MAG pumps are available in different models, from MAG-04 to MAG-30. The table shows the different technical data of the MAG models for better illustration.

Name Alternative Engine Max Flow Rate Max Delivery Head Engine Performance 1 Engine Performance 2
MAG-04 230V 1Ph 3.5 m³/h 7 meters 0.12kW, 230-400V, 0.66/0.38AH, 3PH, 50Hz, IP55 0.12kW, 230V, 1.1AH, 1PH, 50Hz, IP55
MAG-07 230V 1Ph 6.5 m³/h 8.5 meters 0.25kW, 230-400V, 1.23/0.71AH, 3PH, 50Hz, IP55 0.25kW, 230V, 2.2AH, 1PH, 50Hz, IP55
MAG-10 230V 1Ph 12 m³/h 13.2 meters 0.55kW, 230-400V, 2.29/1.32AH, 3PH, 50Hz, IP55 0.55kW, 230V, 5AH, 1PH, 50Hz, IP55
MAG-20 IE3 20 m³/h 15 meters 1.1kW, 230-400V, 3.97/2.29AH, 3PH, 50Hz, IP55
MAG-25 IE3 23 m³/h 19.3 meters 1.5kW, 230-400V, 5.3/3.1AH, 3PH, 50Hz, IP55

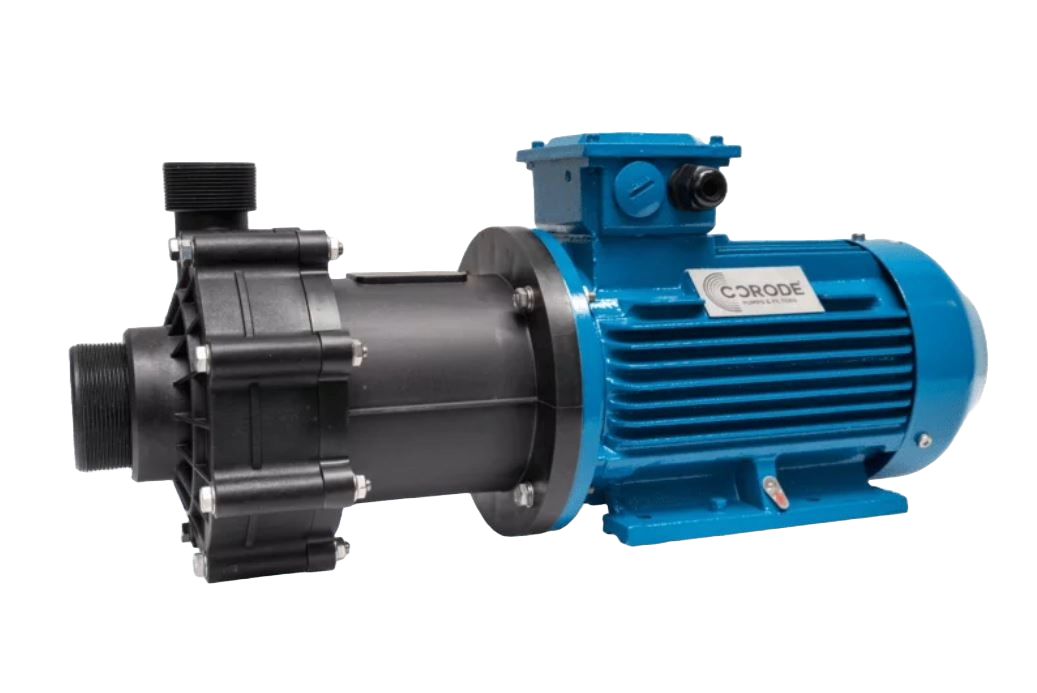

MAG-30 IE3 35 m³/h 24 meters 2.2kW, 230-400V, 7.6/4.4AH, 3PH, 50Hz, IP55
Product information

Magnetically driven centrifugal pump


Depending on the application, the pump head is available in either PP or PVDF - ideal for use with chemical and corrosive liquids.

The shaft and bearing are made of ceramic, which ensures excellent chemical resistance and a long lifetime.

Our pumps are specially designed for media with a viscosity of up to 200cST.

For optimum media resistance, the pumps can be equipped with O-rings made of EPDM or Viton - tailored to the respective chemical requirements.

The maximum media temperature is up to 60°C for pump heads made of PP and up to 90°C for versions made of PVDF.



Megnetgekuppelte Kreiselpumpe CPMD

Technical data

The CPMD pumps are available in different models, from CPMD-01 to CPMD-50. The chart shows the different technical data of the CPMD models for better illustration.

The magnetically driven pumps CPMD-15 to CPDM-50 can be adapted to your requirements. Adjustments can be made to the engine, connections and other components.

Name Standard Engine Alternative Engine Max Flow Rate Max Delivery Head Engine Performance 1 Engine Performance 2
CPMD-01 1Ph 230V 1.8 m³/h 5 meters 0.09kW, 230V, 0.48AH, 1PH, 50Hz, IP55
CPMD-04 3Ph 230-400V 1Ph 230V 3.7 m³/h 7 meters 0.12kW, 400V, 0.76/0.44AH, 3PH, 50Hz, IP55 0.12kW, 230V, 1.1AH, 1PH, 50Hz, IP55
CPMD-07 3Ph 230-400V 1Ph 230V 6.6 m³/h 8.9 meters 0.25kW, 400V, 1.29/0.74AH, 3PH, 50Hz, IP55 0.25kW, 230V, 1.92AH, 1PH, 50Hz, IP55
CPMD-11 3Ph 230-400V 1Ph 230V 11 m³/h 11.8 meters 0.55kW, 400V, 2.3/1.3AH, 3PH, 50Hz, IP55 0.55kW, 230V, 5AH, 1PH, 50Hz, IP55
CPMD-15 3Ph 230-400V 20.4 m³/h 17.8 meters 1.1kW, 400V, 3.85/2.22AH, 3PH, 50Hz, IP55
CPMD-20 3Ph 230-400V 20.8 m³/h 18.2 meters 1.5kW, 400V, 5.42/3.15AH, 3PH, 50Hz, IP55
CPMD-30 3Ph 230-400V 30 m³/h 23.2 meters 2.2kW, 400V, 7.4/4.3AH, 3PH, 50Hz, IP55
CPMD-50 3Ph 230-400V 51.6 m³/h 30 meters 4kW, 400V, 13.7/8AH, 3PH, 50Hz, IP55
