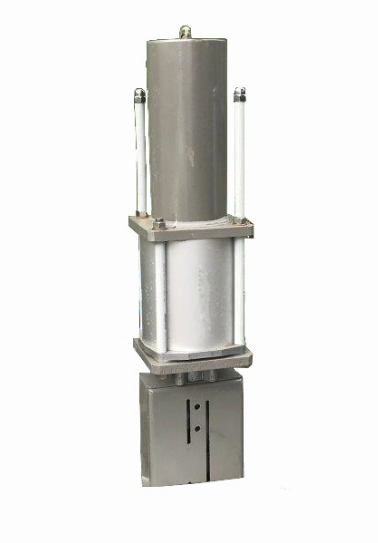

Pneumatic cylinder - single-acting
.png)
Description
- single acting, spring close
- Control pressure 6-10 bar
- Cylinder barrel and base made of aluminium (stainless steel optional)
- Spring chamber: coated steel
- Piston plate made of steel or aluminium
- Piston rod made of stainless steel 1.404, optionally 1.4571
- Available for gate valves up to and including DN 200
| Piston diameter | Standard strokes | Compressed air connections |
| 160 mm | 81 mm, 102 mm, 127 mm | R ¼“ |
| 200 mm | 152 mm, 202 mm | R ¼“ |
