Technical data

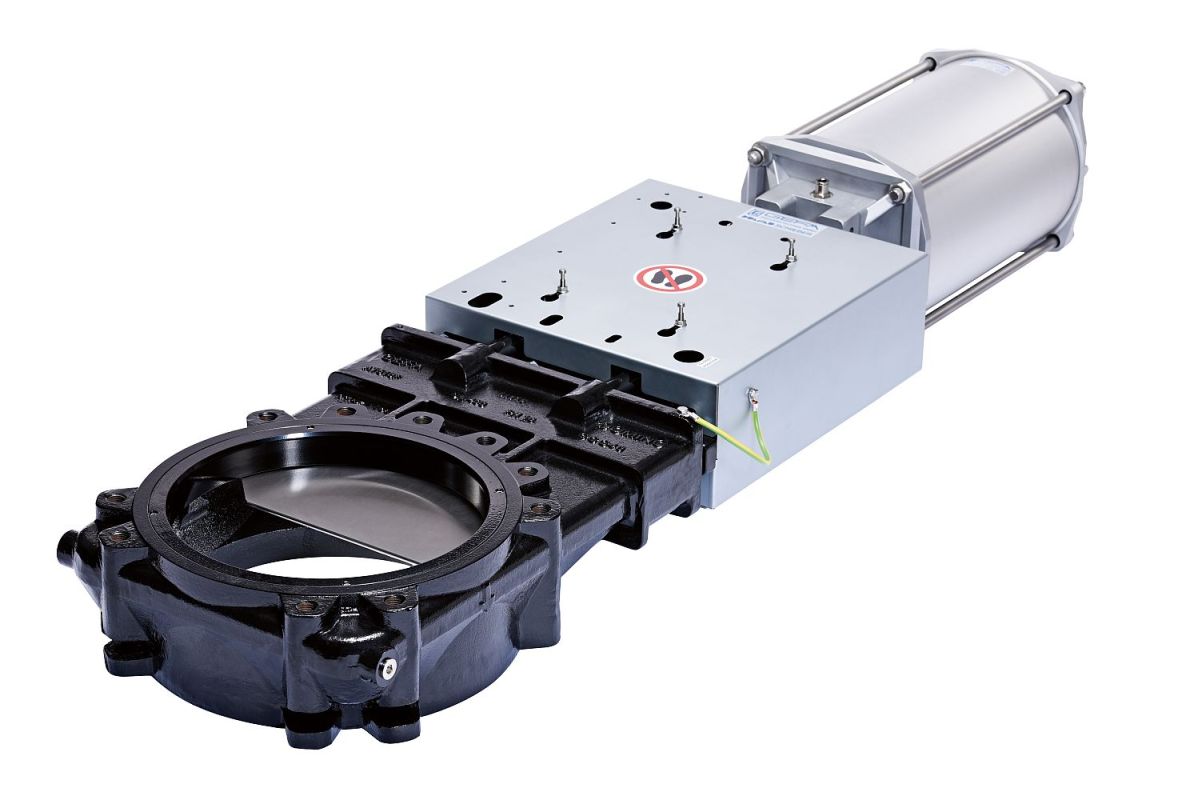

DOMINO knife gate valve for solids with “ATEX approval II 1/2 D c TX”. Wafer and lug type knife gate valve for installation between flanges and suitable for end-of-line service in vertical pipelines and below silos.
One-piece body with funnel-shaped outlet to prevent product deposits, sealing on one side. Flushing connections in the body at the end of the gate stroke allow the valve to close through a standing product column.
- Sizes: DN 200 to DN 800
- Flange: DIN EN 1092-1 PN 10
- Pressure ratings (depending on nominal size): up to PN 10
- Face-to-face dimension: Manufacturer's standard and EN 558-1, Series 16 (DIN 3202 K3)
- Temperature range: -50°C to +400°C
- Coating: EKB, both inside and outside
- Colour: RAL 9005, electrically conductive
- Certifications: CE-Marking, FDA approval EU 1935/2004, ATEX
Applications and Industries
- Pulverized coal firing systems
- Cement plants
- Steel plants
- Power plant industry
- Petrochemistry
- Chemical industry
- Silo installations
- Solids (granules, powder)
- Bulk goods technology
- Dosing of solids
