Technical data

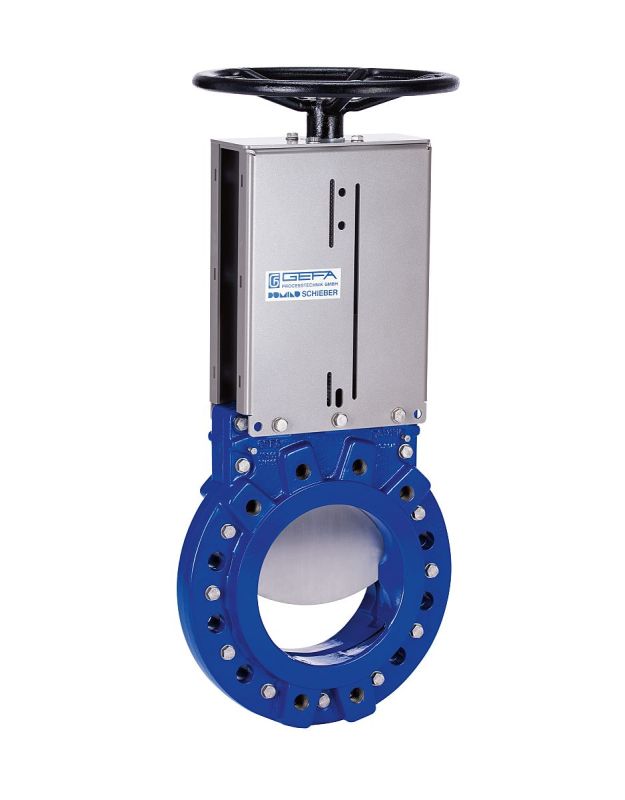

High pressure knife gate valve up to 40 bar operating pressure, e.g. for dewatered sewage sludges or biomass.
Lug type knife gate valve for installation between flanges acc. to EN 1092-1 / PN 10 to PN 40. Also suitable for dead-end service. Two-piece body, bidirectional tight shutoff. Metal guided plate, locked when closed. Self-adjusting COMPACT cross seal, no necessity for gland packing – maintenance-free. Self-cleaning flush-out corners with cutting edge in the lower body area.
- Sizes: DN 100 to DN 300
- Face-to-face dimension: according to DIN EN 558 line 16 (DIN 3202 K3)
- Coating: EKB, both inside and outside
- Colour: RAL 5010
- Certifications: CE-Marking, FDA approval, ATEX
Applications and Industries
- Sludge drying
- Sludge transport
- Sewage sludge incineration
- Digested sludge
- Thick sludge
- Thick materials
- Organical fermentation plants
- Waste-to-energy plants
- Waste incineration plants
- Sewage plants
- Biogas plants
