Technical data

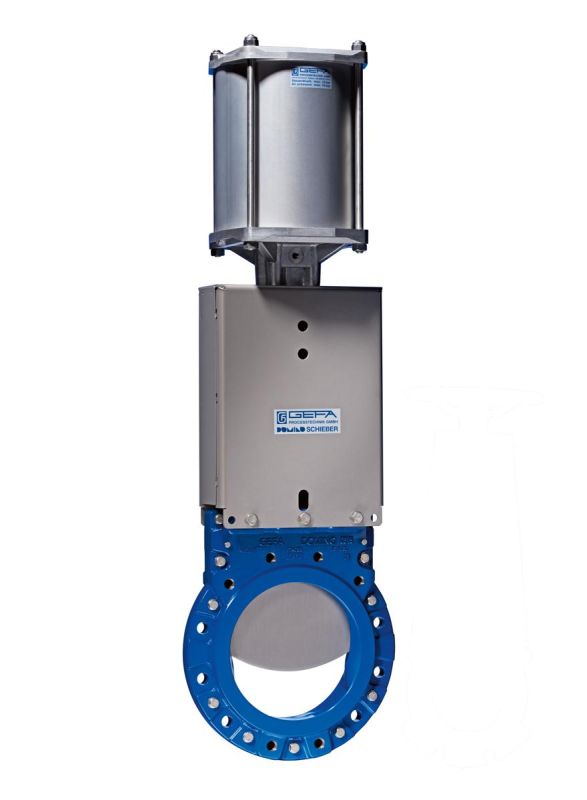

Lug type knife gate valve for installation between flanges according to EN 1092-1 / PN 10. DN 200–DN 400 also available in PN 16.
Two-piece body, bidirectional tight shutoff, metal-guided gate locked when closed, self-adjusting COMPACT cross seal to atmosphere, no gland packing required – maintenance-free, self-cleaning flush-out corners with cutting edge in the lower body area.
- Sizes: DN 50 to DN 1800
- Pressure ratings (depending on nominal size): up to PN 16
- Flange: DIN EN 1092-1
- Face-to-face dimension: according to EN 558-1 line 20/16 (DIN 3202 K1/K3)
- Temperature range: -50°C to +400°C
- Coating: EKB, both inside and outside
- Colour: RAL 5010
- Certifications: CE-Marking, FDA approval / EU 1935/2004, ATEX (zone 0/20), SIL
Applications and Industries
- Biogas plants
- Sewage plants
- Waste water treatment plant
- Pump stations
- Organical fermentation plants
- Coal-fired power plant
- Paper industry
- Ship construction
- Storm water holding tank
- Recycling of waste
- Wast incineration plants
- Chemical industry
- Coal-fired power plant
- Power plant industry
- Petrochemistry
- Cement industry
- Sludge treatment
- Water treatment
- Breweries
- Food industry
