Technical data

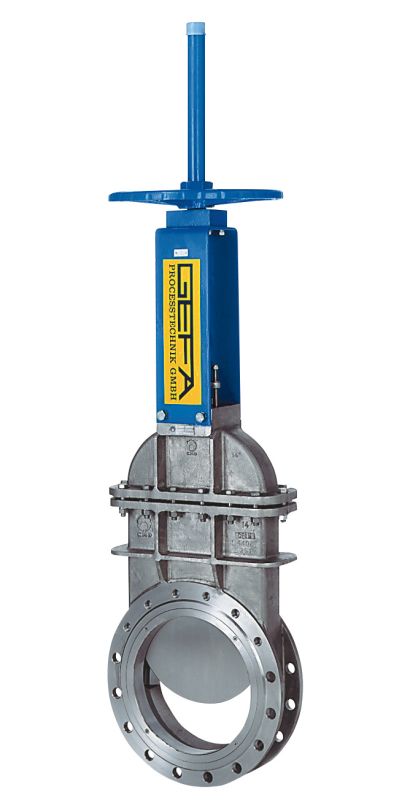

High-pressure gate valve with pressure-encapsulated and self-cleaning body with raised sealing surface for secure seating and gate blade guidance and free opening cross-section.
Intermediate flange design in short face-to-face length. Special applications: Aggressive media, gases and flue gases, clear liquids under high pressure.
For installation between flanges to DIN EN 1092-1, PN 6 to PN 100.
- Sizes: DN 50 to DN 1200 and larger sizes available on request.
- Nominal pressure: PN 6 to PN 100
- Body material: Cast steel GSC 25, rust and acid resistant stainless steel 1.4408
- Plate: Rust- and acid-resistant stainless steel
- Drive types: Handwheel, hand lever, chain wheel, bevel gear, pneumatic, hydraulic cylinders, electric rotary actuators
