Technical data

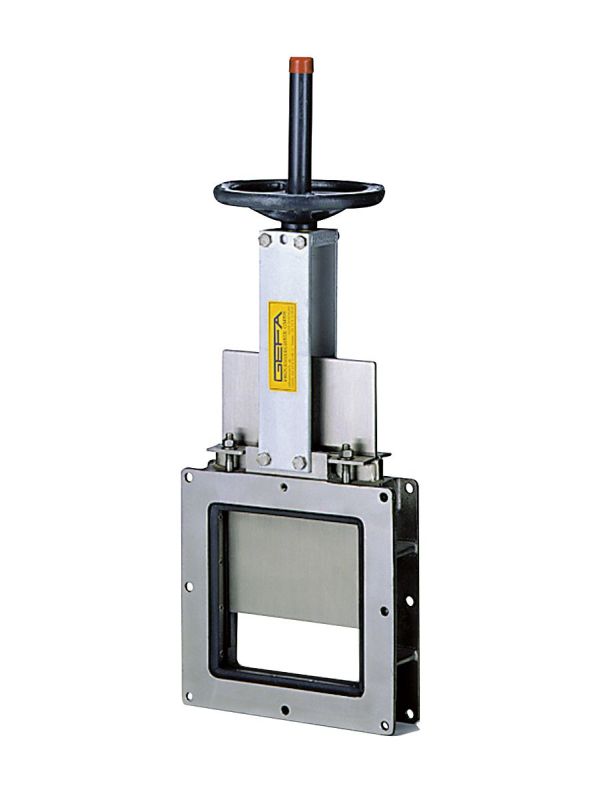

Rectangular knife gate valve with pressure-encapsulated and self-cleaning body with raised sealing surface for secure seating and valve blade guidance and free opening cross-section.
Intermediate flange design in short face-to-face length. Special applications: Aggressive media, gases and flue gases, clear liquids under high pressure.
For installation between flanges according to manufacturer's standard or customer specification.
- Size: clear widths as required (125 x125 to 1400 x 1400). Larger nominal widths and rectangular dimensions on request.
- Nominal pressure: max. 0.6 bar (Higher pressures available on request)
- Body material: Cast steel GSC 25, rust and acid resistant stainless steel 1.4408
- Plate: blade Rust- and acid-resistant stainless steel
- Drive types: Handwheel, hand lever, chain wheel, bevel gear, pneumatic, hydraulic cylinders, electric rotary actuators
