Technical data

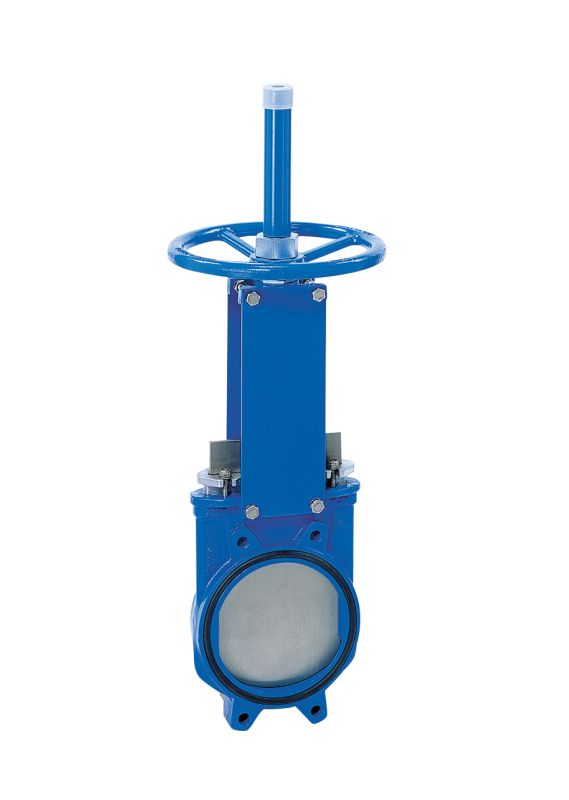

Bi-directional knife gate valve with one-piece body with integral flange gaskets. Soft sealing closure in both flow directions.
Secure sealing in the passage with pressure-shock resistant gate blade guide in the housing during the entire stroke. Bottom pockets incorporated in the body provide a self-cleaning flushing effect.
Intermediate flange valve in short face-to-face length can be used as end-of-line valve.
- Sizes: DN 50 to DN 1800
- Mounting flanges: DIN EN 1092-1, PN 10, ASME Class 150
- Body material: Cast iron GG 25, optionally epoxy resin coated, rust and acid resistant stainless steel 1.4408
- Plate: stainless steel 1.4301/1.4401
- Seals: NBR, EPDM
- Drive types: Handwheel, hand lever, sprocket, bevel gear, etc.
