Technical data

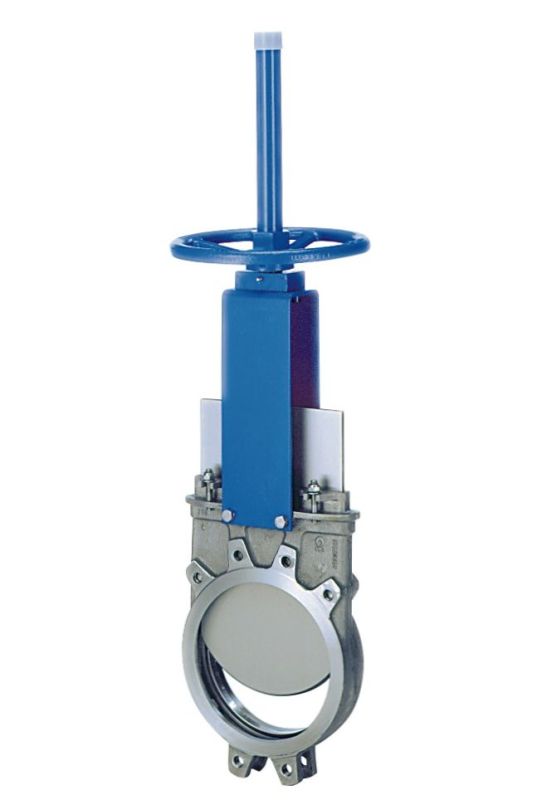

One-piece body with raised sealing surface for secure seating and slide blade guidance. Intermediate flange design in short length.
Sealing on one side - can only be pressurized in the direction indicated by the arrow, intermediate flange valve can be used as end valve.
- Size: DN 50 to DN 1800
- Mounting Flange: DIN EN 1092-1, PN 10, ANSI 150
- Body material: Cast iron GG 25, rust and acid resistant stainless steel 1.4408
- Plate: blade Rust- and acid-resistant stainless steel
- Drive types: Handwheel, hand lever, chain wheel, bevel gear, pneumatic, hydraulic cylinder, electric rotary actuator
