Knife Gate Valve CDT

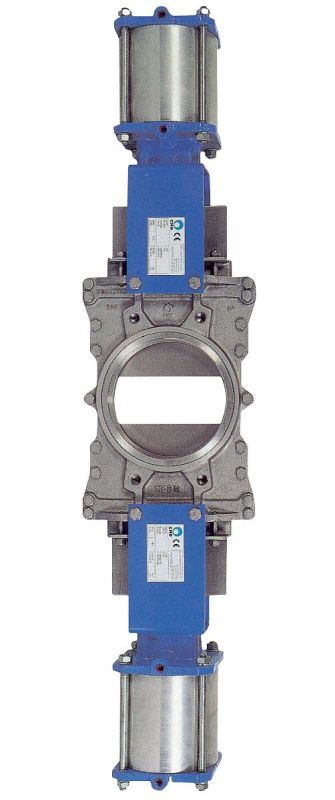

Double plate gate valve with two pneumatic cylinders

++ SALES ONLY In GERMANY ++
Knife Gate Valve CDT

Technical data

Dirt discharge gate valve with two pneumatic cylinders. Two-piece housing with two slide blades, sealing on both sides.

Intermediate flange design in short face-to-face length. For installation between flanges to DIN EN 1092-1, PN 10, ASME Class 150.

  • Sizes: DN 50 to DN 1000
  • Body material: Cast iron GG25, stainless steel 1.4408
  • Plate: Rust- and acid-resistant stainless steel
  • Drive types: Pneumatic cylinder, optionally with stroke limitation
Request product now

Applications and industries

  • Cement plants
  • Steel mills
  • Power plant industry
  • Petrochemical industry
  • Chemical industry
  • Silo plants
  • Solids (granules, powder)
  • Bulk solids technology

Further information

Documentations CDT
Request product now

Knife Gate Valve CD

Knife Gate Valve CGL

Product group knife gate valves
