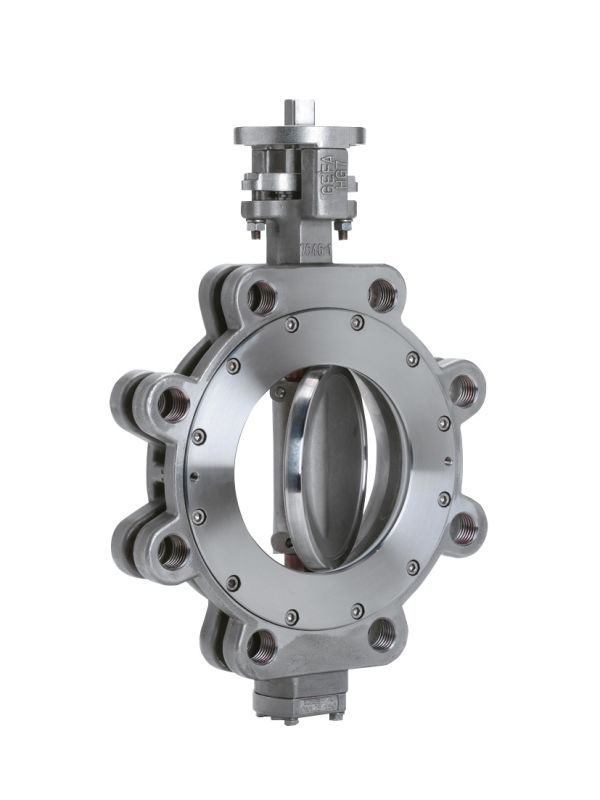

Butterfly valve triple offset design HGT7

Print
Hochleistungsklappe
Description

Technical data
Triple offset valve with lugs for high pressure and temperature loads. Can be removed from the flange on both sides. For installation between flanges EN 1092, PN 10/16/25/40, PS25, ASME Cl 150/300, PS25

Sizes DN 80 - DN 300
Temperature range - 50 °C to + 450 °C
Vacuum up to 1 mbar
FireSafe according to DIN EN ISO 10497 abd API 607
Face-to-face dimension DIN EN 558 line 20 Optional: line 25 and line 16 API 609 table 1
Mounting flange DIN EN ISO 5211
Test DIN EN 12266 P10 P11 P12 F20
Marking DIN EN 19, AD 2000



product information - series HGT (1.93 MB) Technical data sheets Request CAD
