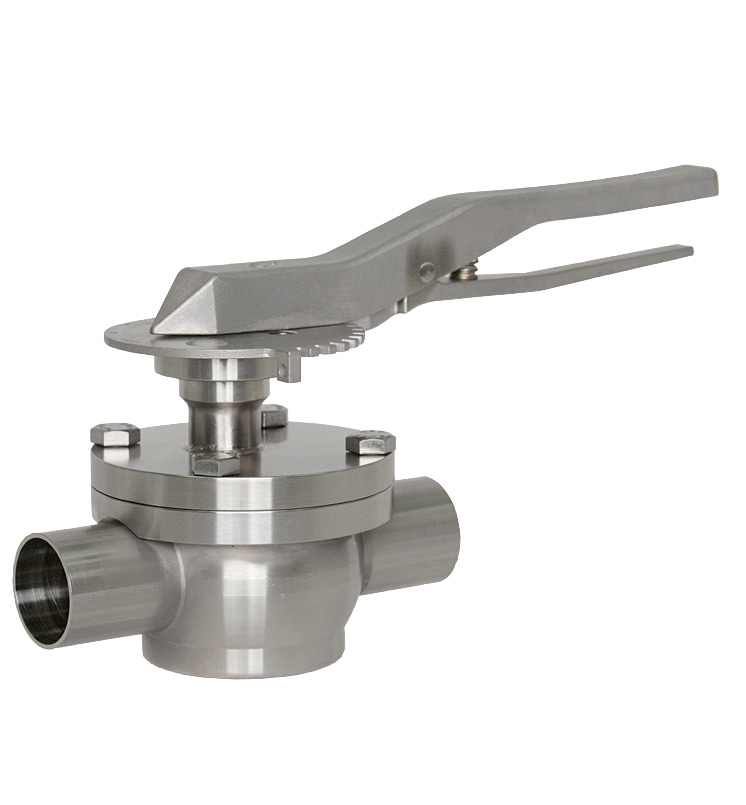

Ball Segment Valve Type TEK

**Sales only in Germany**

Technical data
Ball segment valve with precise sealing function due to the eccentric technology reliable tightness in the closure due to permanent pressure in the seat (valve closes without stop), opening of the full cross-section without media containment and without dead space

Sizes DN 25 - DN 65
Pressure ratings PN 10 - PN 40 or ASME Class 150/300 lbs
Operating temperature - 60 °C to + 225 °C
Connections Flanges according to EN 10921, face-to-face length EN 558 and ANSI B16.10, welding ends according to EN 12627
Automation interface according to DIN EN ISO 5211:2001
Features Top Entry Design (valve can be opened from the top), access to internal parts without removing the valve from the pipeline

Product advantages
No spare parts inside the housing
Dead space free housing, self draining
Easy and quick cleaning of the pipeline and internal parts without dismantling the valve
Easy and quick replacement of wearing parts
Surface roughness inside Ra < 1.3 μm standard - optionally up to Ra < 0.5 μm
