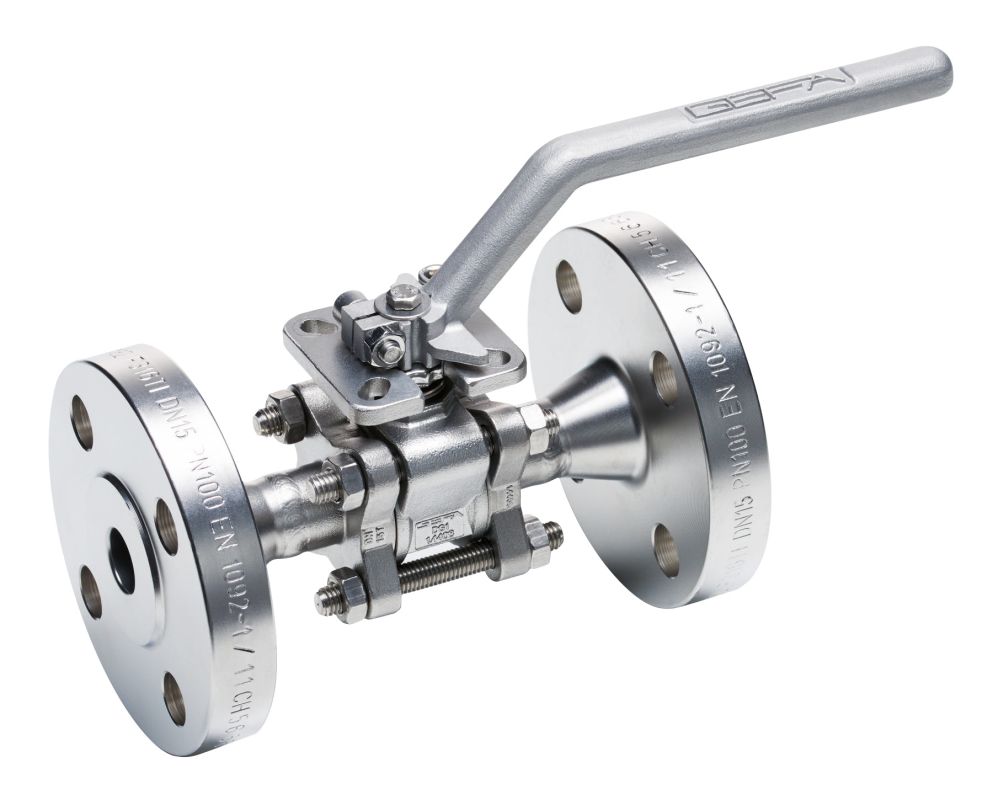

3-piece Ball Valve DG1 flanged design

With flanged ends, full and reduced bore

Series DG 1 connection 1 (flanged ends)

Ball valve for installation between flanges acc. to DIN EN 1092 or ASME.

Size: DN 8 to DN 150
Pressure ratings (depending on nominal size): up to PN 125
Temperature range: -52°C to +280°C
Vacuum: up to 1 mbar(abs)
Bore: full and reduced bore
Special features: All advantages of a three-piece ball valve are retained. Cost-effective alternative to high-pressure flanged ball valves (PN63/PN100)
Face-to-face dimension: EN 558-1 series 1 (DIN 3202-F1), other face-to-face dimensions possibl
Mounting flange: DIN EN ISO 5211
Test: Inspection certificates acc. to EN 10204/3.1, Pressure and tightness tests acc. to DIN EN 12266 P10 P11 P12, leakage rate A

Body	1.4408, 1.4529
Ball	1.4408, 1.4529, ceramic
Ends/Connections	Stainless steel 1.4408, 1.4529, 1.4571
Stem	1.4542 (17-4PH), 1.4529
Seat and body rings	PTFE, PTFE/glass, PTFE/carbon, PEEK, UHMWPE, POM, PVDF
Options	cavity-reduced design, polished internal passage, pressure relief hole, oil- and grease-free
