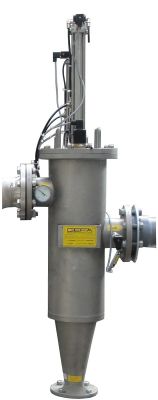

Coarsefilter Stainless steel
The ACF was developed as a special filter for protection of pumps, pipe systems and process equipment against big particles. The filter has a special construction and combines flowpatterns and turbulence for cleaning of a wedge wire filter-element. The filtration direction is from inside to outside. The cleaning is by the liquid itself and can be made manually or automatic. The cleaning cycle only takes 5 seconds. When the solids are heavy or sticky, the separating mechanism can be assisted by a scraper mechanism. A pneumatic cylinder moves a mechanical scraper over a wedge wire filter element in an axial direction. The difficult backwashable dirt as there are: fibres, flakes of granulat or organic waste, will be shoved to the outlet and drained away through the flush valve.
Available filtration degrees:
250 µm (0,25 mm), 500 µm (0,5 mm), 1000 µm (1 mm), 2000 µm (2 mm), 3000 µm (3 mm), 5000 Mikrometer (5 mm)
Nominal sizes:
DN 50 (2") , DN 100 (4"), DN 150 (6"), DN 200 (8"), DN 250 (10"), DN 300 (12"), DN 400 (16"), DN 600 (24")
Main Features
- ACF is constructed in SS316L and can be cleaned with light acids
- High quality 316L grade stainless steel baskets with large filtration areas resulting in low pressure drops
- Compact design for space saving.
- Quick release filter covers and knobs for easy maintenance.
- Operation pressure: 10 bar type M002 - M010 / 6 bar type M012 - M024
- Operation temperature: 80 °C Type M002 - M010 / 60 °C Type M012 – M024 (higher on request)
- Available baskets: 0,25 - 5 mm (other on request)
- Seals: NBR
Options:
- Range of extras allowing filter to be customised.
- Visual/Electrical differential pressure indicators are available.
Which filter is right for your application?
Approximate calculation of the filter type with an operating pressure of min. 2 bar
Cooling water quality (dirt load of approx. 100mg/l) |
|||||
25 m³/h |
50 m³/h |
100 m³/h |
150 m³/h |
200 m³/h |
|
500µm |
ACF004P, DN100 | ACF006P, DN150 | ACF008P, DN200 | ACF008P, DN200 | ACF010P, DN250 |
1000µm |
ACF004P, DN100 | ACF004P, DN100 | ACF006P, DN150 | ACF008P, DN200 | ACF010P, DN250 |
2000µm |
ACF002P, DN50 | ACF004P, DN100 | ACF006P, DN150 | ACF008P, DN200 | ACF008P, DN200 |
River water quality (dirt load of approx. 200mg/l) |
|||||
25 m³/h |
50 m³/h |
100 m³/h |
150 m³/h |
200 m³/h |
|
500µm |
ACF004P, DN100 | ACF006P, DN150 | ACF008P, DN200 | ACF008P, DN200 | ACF010P, DN250 |
1000µm |
ACF004P, DN100 | ACF004P, DN100 | ACF006P, DN150 | ACF008P, DN200 | ACF010P, DN250 |
2000µm |
ACF002P, DN50 | ACF004P, DN100 | ACF006P, DN150 | ACF008P, DN200 | ACF008P, DN200 |
