Technical data

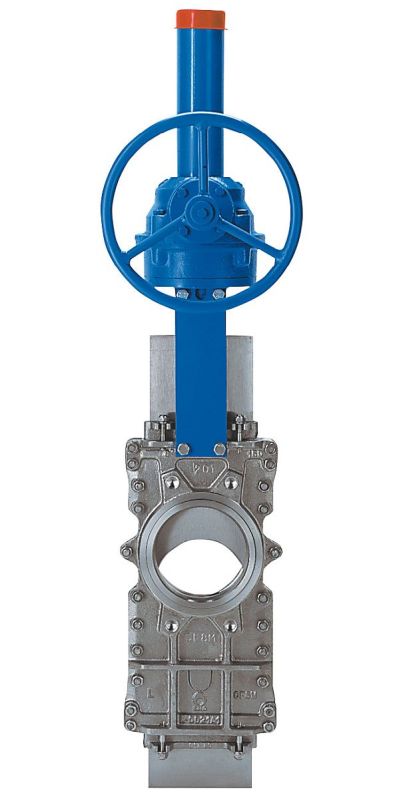

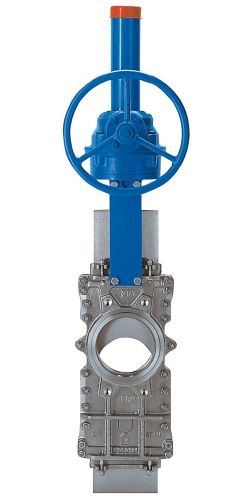

Knife-gate valve with two-piece body with continuous parallel valve blade for safe shut-off in both flow directions and free opening cross-section.
Intermediate flange design in short face-to-face length. Particularly suitable for high flow velocities and media with a high degree of contamination.
Main applications paper industry, chemical industry, power and steel plants, pneumatic conveying of solids. For installation between flanges to DIN EN 1092-1, PN 10, ANSI 150.
- Sizes: DN 50 to DN 1200
- Body material: Cast iron GG 25, rust and acid resistant stainless steel 1.4408
- Plate: Rust- and acid-resistant stainless steel
- Drive types: Handwheel, hand lever, chain wheel, worm and bevel gears, pneumatic, hydraulic cylinders, electric rotary actuators
