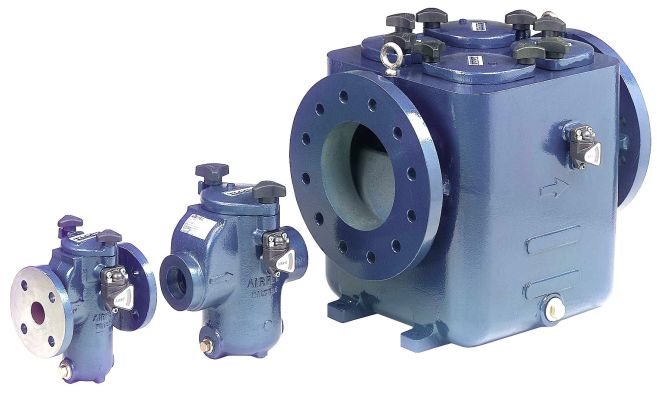

Singlefilters offer a cost-effective solution for protecting pipework systems or liquids from damage.
Various specifications and extensions can also be added.
The filter housing is made of high-quality cast iron and is offered with a high-quality stainless steel strainer basket.
The area of application for this filter is in liquid treatment, where the volume flow can be briefly interrupted to clean the filter basket.
Available finenesses
10, 25, 50, 80, 130, 190, 250, 380, 560, 910, 1600, 3170, 6350 micron (µm)
Nominal sizes
DN 20 (¾"), DN 25 (1"), DN 32 (1¼"), DN 40 (1½"), DN 50 (2") , DN 65 (2½"), DN 80 (3"), DN 100 (4"), DN 150 (6"), DN 200 (8"), DN 250 (10")
Material
Housing selectable in cast iron, cast steel, bronze or stainless steel
Main Features
- compact design
- working pressure up to 50 bar
- AISI 316 stainless steel strainer basket with large filter surface, which generates only low pressure losses
- easy opening of the lid for quick cleaning of the filter basket
Options
- customised solutions with various extras
- optical and electrical differential pressure indicator available
- magnetic rod for retaining magnetic particles
