Flanged ball valve FGT

Resistant on the inside, elegant on the outside - The ball valve for aggressive media

Industrial progress is constantly presenting us with new challenges. Especially in safety-critical areas where chemical loads are extremely high, the selection of the right components is crucial. This is where the FGT flanged ball valve comes in - a solution that impresses with both internal durability and external elegance.

The valve industry knows how critical it is to choose the right valve for sensitive installation locations. Corrosion, aggressive media and high pressure ratios are just some of the challenges that need to be overcome. However, the FGT ball valve offers a pioneering answer to such challenges.

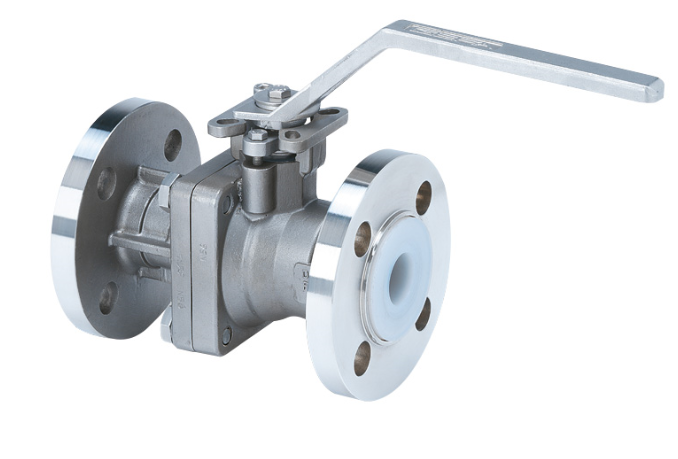

Flanged ball valve FGT

The problem with aggressive media

Areas such as the chemical industry, pharmaceuticals or petrochemical processes place high demands on the valves used, as conventional materials and designs often fail under harsh conditions. The most common problems include corrosion caused by aggressive media, which occurs particularly in chemical processing and can severely corrode both the inner and outer valve. In addition, improper stem seals often lead to leaks, allowing hazardous substances to escape in an uncontrolled manner. Another problem is the limited longevity, as materials such as painted materials cannot permanently withstand the extreme environmental influences. To meet these challenges, robust, durable and reliable solutions are needed that meet the special requirements of these industries.

The GEFA solution - FGT flanged ball valve in detail

What makes the FGT flanged ball valve from GEFA so special? The answer lies in a sophisticated combination of high-quality materials and advanced design technology.

Premium material selection
Instead of cast materials, the FGT uses a stainless steel body made of 1.4408, which ensures maximum corrosion resistance even in the toughest environments. At the same time, the wear and tear or damage that often occurs with painted surfaces is avoided.

Chemical resistance thanks to PFA lining
The thick-walled PFA lining (polyfluoroalkoxy) ensures unparalleled chemical resistance. The high diffusion resistance enables use in the processing of extremely aggressive media, which would quickly destroy conventional valves.

Sealing and safety
A spring-loaded stem seal with V-rings made of PTFE (polytetrafluoroethylene) offers absolute reliability. This minimizes the risk of leaks and increases safety, especially in areas that are subject to strict environmental or occupational safety regulations.

Automation made easy
Thanks to the EN ISO 5211 interface, the ball valve can be automated easily and cost-effectively. This includes the direct assembly of actuating elements and actuators, which makes processes even more efficient.

Flanged ball valve FGT

Where is the FGT flanged ball valve used?

The FGT flanged ball valve is the ideal choice in demanding industrial areas. This ball valve shows its strengths particularly in environments where chemical and mechanical loads come together. It is used in the following industries, among others:

Food and beverage industry

Thanks to its availability in accordance with the (EC) No 1935/2004 food safety standard, the FGT is perfect for hygiene-sensitive applications. Whether in the dairy or in beverage bottling - the chemical resistance and excellent seal guarantee the highest safety standards.

Chemical industry

The FGT ball valve is able to withstand aggressive acids and alkalis. The thick-walled PFA lining prevents any weakening due to diffusion of chemicals.

Pharmaceutical and petrochemical industry

Absolutely tight and highly resistant to corrosion, the ball valve is irreplaceable in critical processes. At the same time, the EN ISO 5211 interface facilitates the cost-efficient integration of automation elements.

High-purity media and process engineering systems

The precise production and modular expansion options make it the leading choice even in the most technologically demanding processes.

Conclusion - The innovative leap in service life optimization

Choosing the right flanged ball valve is crucial for the efficient and safe operation of industrial systems. The FGT ball valve from GEFA offers an ideally matched solution combining durability, functionality and flexibility. This state-of-the-art product raises every system to a new level of performance and safety.

Ready to optimize your processes? Contact us today to find out more about how the FGT ball valve can revolutionize your applications.

Flanged ball valve FGT
