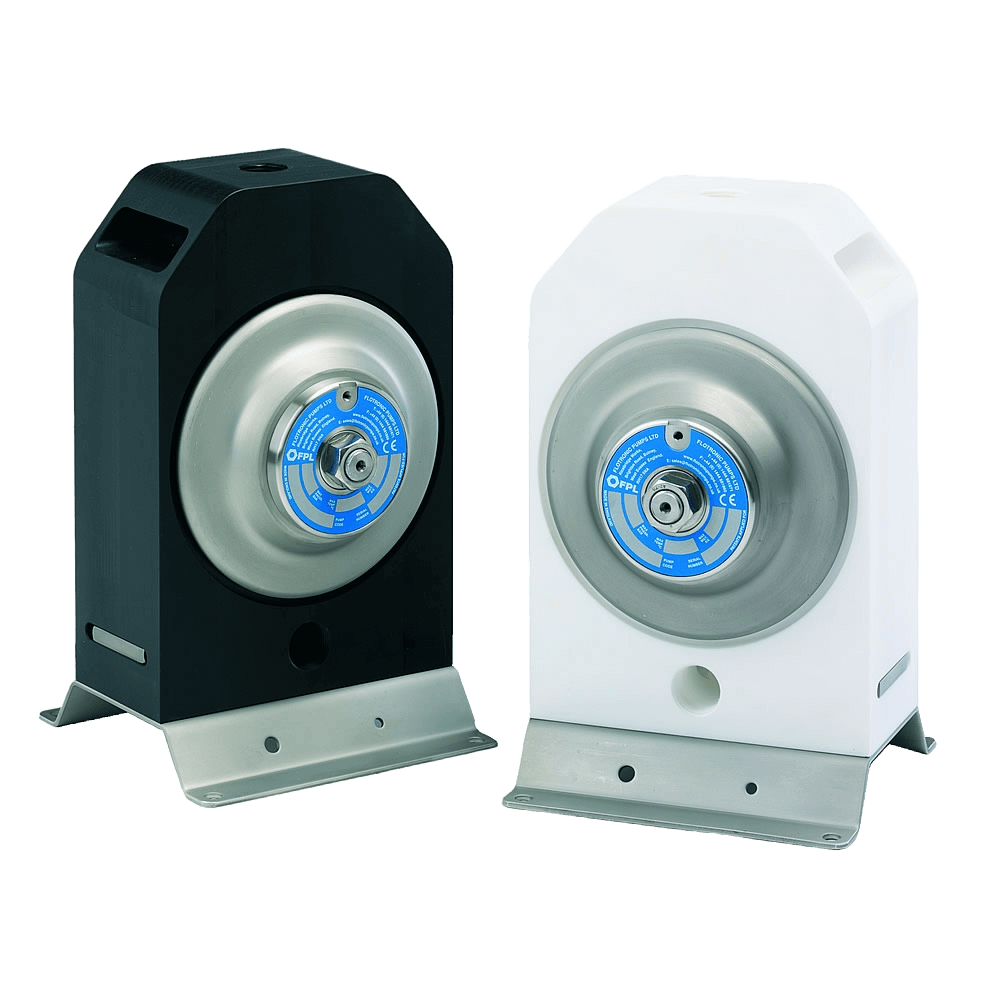

Minichem PTFE Plastic Pumps
Description
-SALES ONLY IN GERMANY-
A solid housing made of pure PTFE or also as an antistatic version ensures the desired safety without compromising fast maintenance. This pump finds application with hazardous acids or chemicals where only PFTE can be used.
Both flanged and threaded connections are available to ensure full compatibility with existing PTFE lined piping.
All non wetted parts are polypropylene as well as stainless steel and ATEX compliant. In terms of human and environmental protection, diaphragm rupture protection (optional) is also available.
Performance features of the Minichem:
- "ONE-NUT" technology for easy and fast maintenance
- Self-priming (suction height up to 2m dry)
- For pumping aggressive chemicals and other hazardous materials up to 80°C
- Very good stability due to integration of suction and discharge connections in the pump housing
- ATEX directive compliant up to gas group IIC
- Connection sizes of DN15 and DN25
- All non wetted parts made of polypropylene and stainless steel
All this supports:
- Maintaining safety levels in hazardous environments and operations
- Reducing downtime and maintenance costs
- The increase in productivity
Application:
- Chemical and pharmaceutical products
Exploded view of Minichem PTFE plastic pump
