GEFA shut-off valves in the food and pharmaceutical industry
In the pharma, food & beverage industry, there are high technical requirements and demanding environmental conditions for all components used. For an efficient and economical production, highquality valve technology is essential. At GEFA, we offer exactly that - shut-off valves, rupture disks and hygienic pumps of the highest quality and absolute reliability under all operating conditions.
We are experts in these industries and our valve technology has proven itself for decades in the most difficult environments, the strictest hygiene regulations and the highest demands of process technology. Our valves are designed to meet the highest cleaning standards and therefore offer an optimal solution for hygienically demanding environments. Put your trust in GEFA valves and rely on an optimized production!
Valves compliant with the Regulation (EC) No. 1935/2004 and the FDA Directive
At GEFA, we ensure that our valves meet the highest standards to guarantee the health and safety of consumers. Our valves and/or individual components are therefore available in accordance with the regulations of (EC) No. 1935/2004 and FDA. By complying with these regulations, we ensure that our valves are free from harmful substances and have no undesirable effects on the quality of the products.
Regulation (EC) No. 1935/2004 regulates the requirements for materials and articles that may come into contact with food. (EC) No. 1935/2004 stipulates that food contact materials must neither impair the taste of food nor endanger human health. This is regulated in the Regulation on individual measures for all materials, such as plastics, elastomers, coatings and paints. This applies not only to the individual components, but also to the entire unit, right through to packaging.
The FDA (Food and Drug Administration) is a US authority responsible for regulating and monitoring food, drugs, medical devices, cosmetics and tobacco products. The FDA sets standards and regulations to ensure the health and safety of consumers.

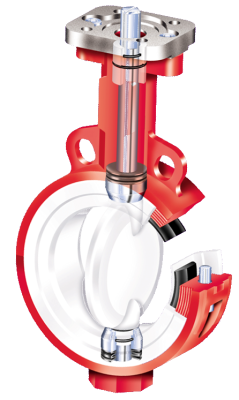

PTFE-lined Butterfly valve
Series K
- The complete body is lined with PTFE with the seat ring as a multifunctional sealing element
- Pharmaceutical version/cavity free with smooth PTFE sealing surfaces to the flange also as conductive version with FDA approval
- Permanent sealing with chemical resistance
Find more product information here
Double eccentric high performance butterfly valve - Series HG
- Reliable sealing against high pressures and low torques due to the double offset design
- Low-wear switching characteristics with variable seat ring materials
- Pivoting angle limitation and optical position indicator at the stem prevent wrong position of the stem during servicing
Find more product information here
Soft seated butterfly valve - Series K
- Can be used for almost all media, from use with acids to the sensitive food and pharmaceutical industries
- The complete body is lined with elastomer with the seat ring as a multifunctional sealing element
- Very service-friendly: Very quick change of the seat due to the two-piece body design
Find more product information here

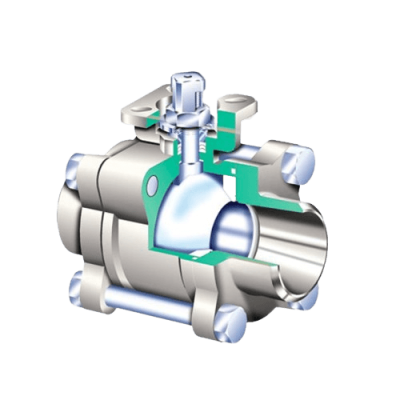

Three-piece ball valve - Series DG
- Operationally proven and reliable design even in case of high pressures
- Wide range of variants: variable connections (among others orbital weld ends), multi-way design
- FAlso available from stock in stainless steel 1.4529 for applications with corrosive media
- Ease of maintenance: Very quick replacement of seals due to the center section, which can be swiveled out
Find more product information here

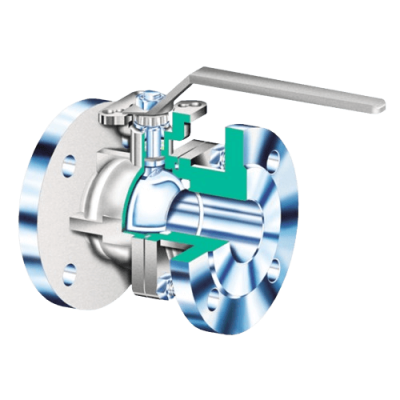

Flanged ball valve -
Series FG
- Face-to face dimension according to EN 558 series 14 (DIN 3202-F4), EN 558 series 1 (DIN 3202-F1)
- Reliable sealing to the outside and in the bore, even with high switching frequenci
- Version with complete PFA lining possible (FGT type)
Find more product information here

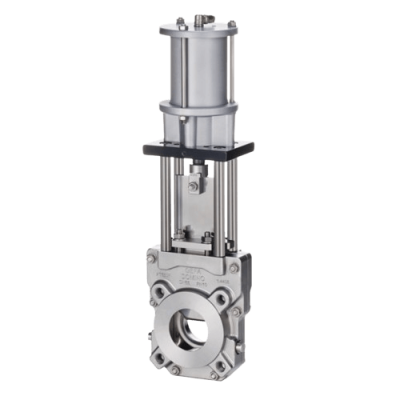

DOMINO solid knife gate -
Series SDH - AT550F
- For pharmaceutical and chemical applications
- Polished surfaces and seals with FDA conformity
- Suitable for fine, free-flowing solids
- Can be used as a shut-off valve under silos, in downpipes and in solids locks
- Application as a dosing gate-valve
Find more product information here

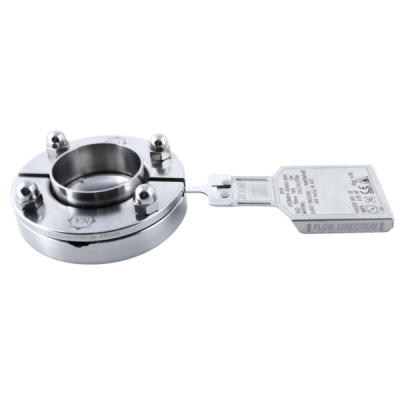

Rupture disk -
Series Zanitary®
The ZOOK Zanitary® series is a groundbreaking innovation developed specifically for hygienic applications. By utilizing the latest manufacturing technologies and advanced design, this series offers industry-leading performance and reliability in pressure relief. During production, particular emphasis is placed on the highest quality and hygiene to ensure that Zanitary® valves meet the strictest requirements. They are made from high-quality materials and are individually tailored to the requirements of your application. Metallic sanitary rupture disk:
- Ideal solution for high-purity and corrosion-resistant applications in the life science sector
- Quick and easy installation in standard clamp connections (Tri-Clamp) in accordance with DIN 32676, ISO 2852, BS 4825 or ASME BPE
- Rupture disk material Stainless steel 316L or Hastelloy® C
- Standard surface quality 0.1 to 0.5 Ra (µm)
- Suitable for CIP cleaning (Cleaning in Place)
- Nominal sizes from DN 25 (1”) to DN 100 (4”)
- Rupture tolerance +/-5%, optionally +/-10%
Find more product information here

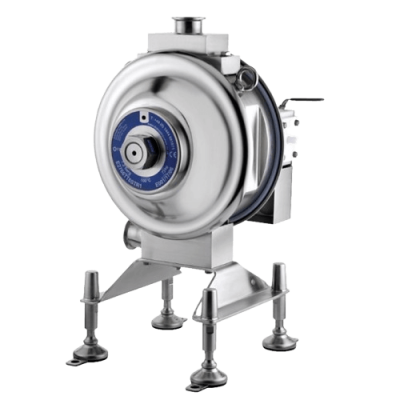

Hygienic pump - Series E
The E-Series is the safest solution for the transfer of all types of hygienic products. Designed to the exacting performance standard of the EHEDG (European Hygienic Engineering and Design Group), the E-Series offers the best performance features for the pharmaceutical and food industries EHEDG certified hygienic pump:
- Quick and easy maintenance thanks to the “One Nut” concept
- Case material stainless steel 316L
- Exclusive CIP design (Cleaning in Place) up to 5 bar-g
- Standard surface quality 0.1 to 0.8 Ra (µm)
- Pumping of very high viscosity media
- Hygienic connections according to BS, DIN or ISO available
- Delivery of spare parts within 24 hours
Find more product information here
Download our Pharma, Food & Beverage flyer here
Pharma, Food & Beverage (GB) (5.49 MB)
If you are looking for an optimally matched shutt-off valve for your pharmaceutical and food products, you are welcome to contact our team of experts - our specialists will be happy to advise you!
